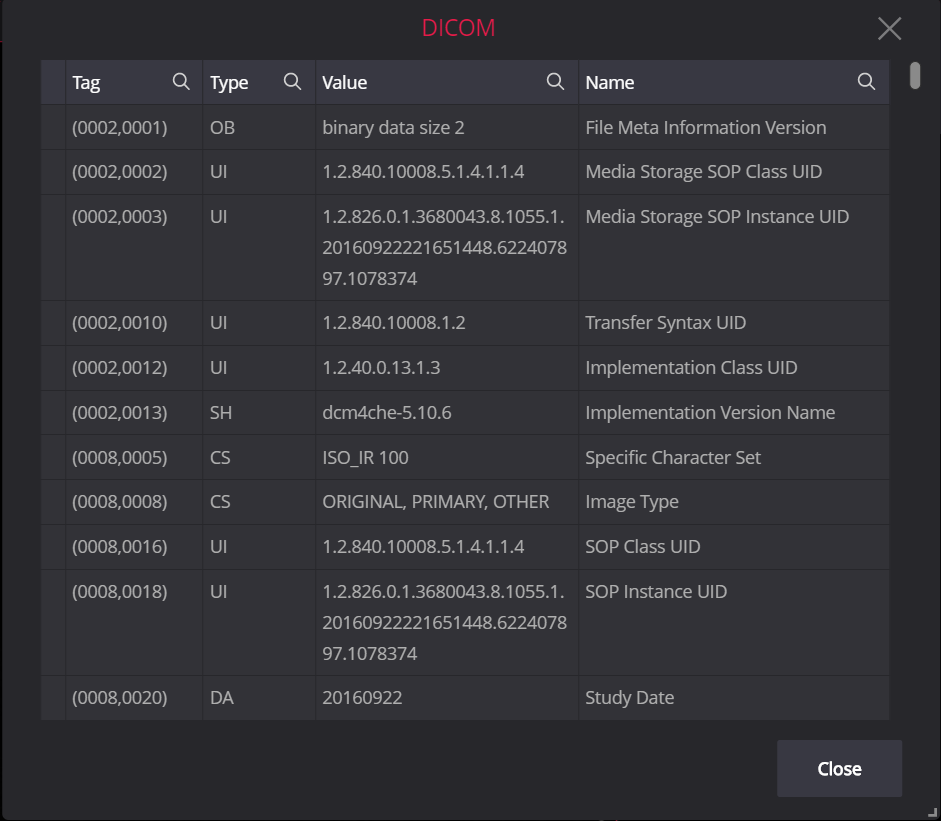

Click DICOM button to open the modal with DICOM tags of the active image:
Figure 60. DICOM tag window

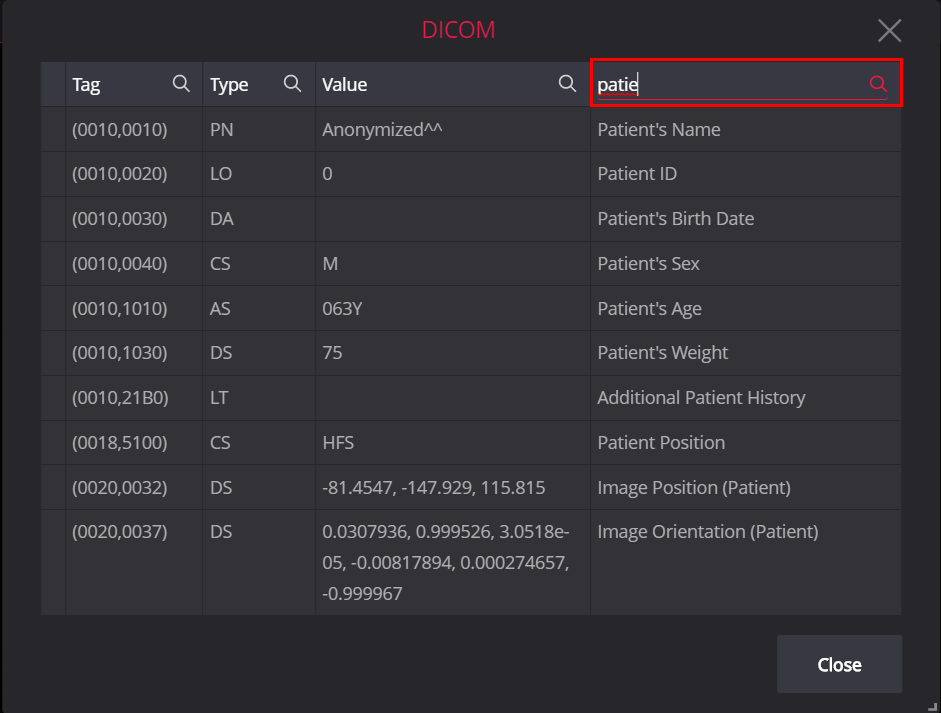

You can search the DICOM tag by selecting the appropriate criteria entry field and entering the text in it. Search according to Tag, Value, Type, and Name parameters can be done. The system filters the data automatically at the text entry:
Figure 61. Search according DICOM tag name in DICOM tag window

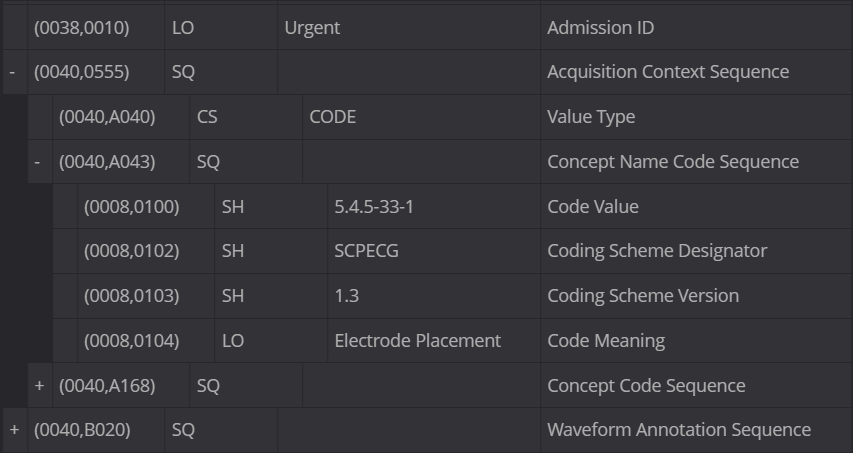

‘+’ sign on the left of SQ tags indicates the container tag, that holds the other tags. Click the ‘+’ sign to expand the list and see the internal tags:
Figure 62. Expanding the SQ tags in DICOM tag window
