MIST Axial, MIST Coronal, MIST Sagittal

By selecting the corresponding menu option, you can launch the series image reconstruction in one of three planes: MIST Axial, MIST Coronal, or MIST Sagittal. The program performs the following steps:

• Preloads the series images. The progress bar appears in the viewport during image preload process.
• Applies the required image transformation if the selected plane differs from the original series data set. The transformation tag is displayed in the viewport, if applied.
• Displays the selected view (Axial, Coronal, or Sagittal) in active viewport. The scroll cursor is moved in the middle of the initial or calculated set of images.

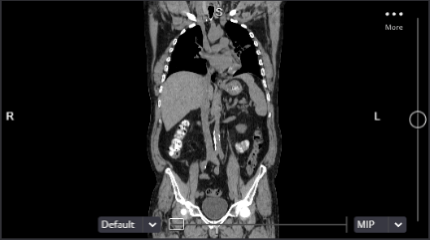

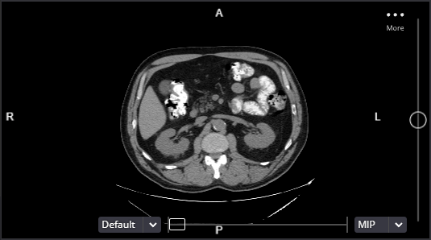

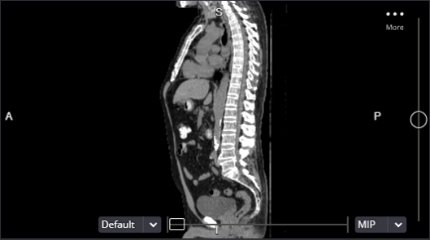

Figure 55. MIST axial, MIST coronal, MIST sagittal

The reconstruction action can be initiated with shortcuts. By system value by default, the shortcuts are:

• MIST Axial – Shift + I
• MIST Coronal – Shift + O
• MIST Sagittal – Shift + P

These values of shortcuts can be changed. For more information see in chapter "Shortcuts".

The functionalities on transformed images are the same that on MIST Oblique. See the section above.
