The Line tool helps to measure the distance between objects:
- select Line tool in Measure menu.
- place the mouse cursor on the starting point, click and release the selected mouse button.
- move the cursor to the end point, click the selected mouse button and release it.

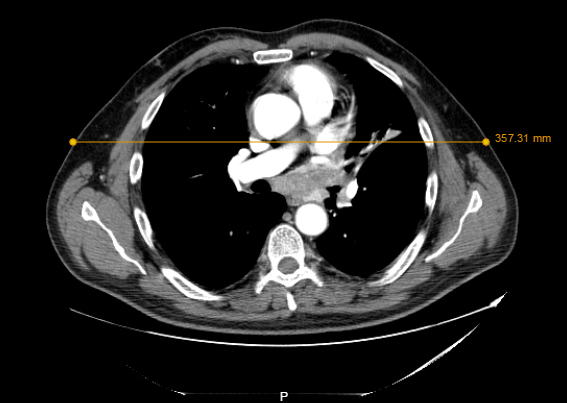

- the distance will be displayed in yellow:
Figure 66. Distance measurement
